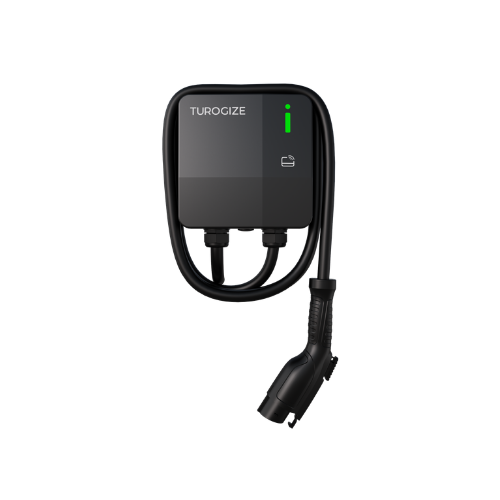

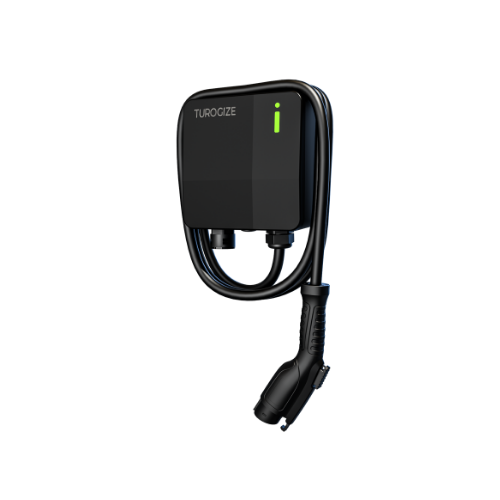

AURORA II Series

9.6 kW / 11.5 kW AC Charger

The TuroGize AURORA II Series is a versatile Level 2 AC charger with field-selectable power settings, available in either SAE J1772 or NACS connector configurations. Smart scheduling via mobile app, OCPP 1.6J and RFID support, and advanced multi-layer safety protection — including RCD, ground fault, and SPD — deliver flexible, reliable charging. ETL/IC certified for Canadian standards.

Document Download
Get a Quote
KEY FEATURES
SPECIFICATIONS
POWER
  • Input Voltage

    208-240Vac

  • Output Current & Power

    9.6 kW (40A) / 11.5kW (48A)

  • Power Wiring

    L1 / L2 / GND

  • Input Cord

    NEMA 14-50 Plug / Hardwire

  • Mains frequency

    50 / 60Hz

  • Connector Type

    J1772, 25ft, NACS (optional)

  • Ground Fault Detection

    CCID 20

  • Protection

    UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection

USER INTERFACE
  • Status Indication

    LED indication

  • Connectivity

    Wi-Fi (2.4G), Ethernet

  • User Authentication

    Plug & Charge, OCPP1.6J, APP, RFID

  • Software Update

    OTA

CERTIFICATION & STANDARDS
  • Safety & Compliance

    UL991, UL1998, UL 2231, UL2594

  • Certification

    ETL / IC

  • Warranty

    2 years

GENERAL
  • Enclosure Rating

    NEMA 4 (IP65), IK08

  • Operating Altitude

    < 6561ft (2000m)

  • Operating Temperature

    −22°F ~ +122°F (−30°C ~ +50°C)

  • Storage Temperature

    −40°F ~ +185°F (−40°C ~ +85°C)

  • Operating Humidity

    5 ~ 95%

  • Mounting

    Wall mount

  • Color

    Black

  • Product Dimensions

    8.66″ × 8.66″ × 3.82″ (220mm×220mm×97mm)
